The execution manager provides an interface [1] to retrieve
- application short name path,
- status code as returned by the POSIX [2] system call wait,
of all child process terminations. This includes both normal and abnormal terminations. It allows a user provided error handler application to extract the termination conditions using POSIX defined macros, e.g. WIFEXITED, WEXITSTATUS, WIFSIGNALED, WTERMSIG.

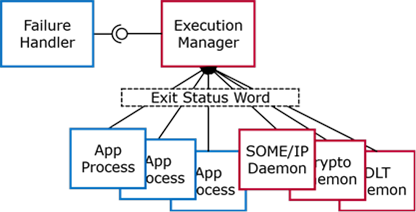

Termination Notification Performed by the Execution Manager
In the figure above processes with blue boundaries are examples of user provided applications. Processes with red boundaries are examples of MICROSAR Adaptive base software components.
