Create Network Endpoint

The Create Network Endpoint wizard supports you in creating Network Endpoints.

Open Wizard

The Create Network Endpoint wizard can be opened as follows:

• When creating a new Machine Design, click the Create Network Endpoint... icon on the SOME/IP Service Discovery or Network Endpoints page of the Create Machine Design wizard.
• Alternatively, open the Machine Editor. In the Machine Design area of Machine elements, click the Add Network or Add SOME/IP Service Discovery icon. On the dialog that opens, click the New Network Endpoint... icon.

The Create Network Endpoint wizard opens.

Step-by-Step Procedure

To create a Network Endpoint, open the Create Network Endpoint wizard and proceed as follows:

1. Ethernet Physical Channel Page

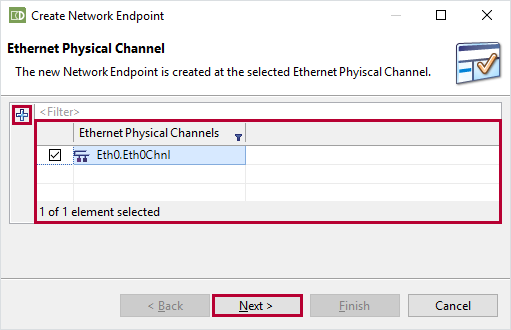

2. The Ethernet Physical Channel page lists all existing Ethernet Physical Channels. An Ethernet Physical Channel is a child element of a cluster. Every cluster has exactly one Ethernet Physical Channel. The names of the listed Ethernet Physical Channels are formed as follows: <CLUSTER_NAME>.<CHNL_NAME>.
3. Activate the check box of the Ethernet Physical Channel for which you want to create a Network Endpoint.
   To create a new Ethernet Physical Channel, click the Create Ethernet Physical Channel icon and specify the general settings in the Create Ethernet Physical Channel dialog.
4. Click [Next >] to confirm your selection.
5.
2. Network Endpoint Settings Page

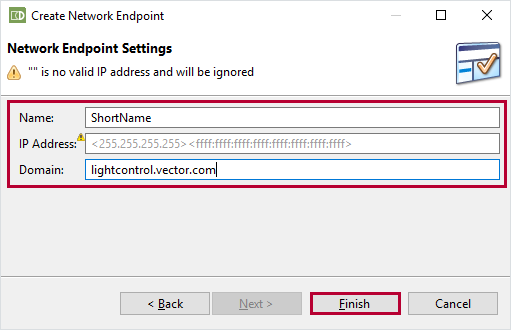

3. On the Network Endpoint Settings page, the Network Endpoint for the selected Ethernet Physical Channel is defined.
4. Enter the Name of the Network Endpoint.
   Optionally, enter the IP Address (IPv4 or IPv6) and Domain name.
5. Click [Finish] to close the wizard.
6.
7. The Network Endpoint has been created.
