Create Machine Design

The Create Machine Design wizard supports you in creating new Machine Designs.

Open Wizard

To open the Create Machine Design wizard, expand your DaVinci Adaptive project in the DaVinci Project Explorer and double click on Open Project Dashboard. The Project Frame opens showing the Project Home. You can then open the Create Machine Design wizard as follows:

• Open the Wizard menu on the top right of the Project Frame and click the Machine Design Wizard command.
• Alternatively, use the context menu command Create| Create Machine Design... of an AUTOSAR Package in the AUTOSAR Model Explorer.

The Create Machine Design wizard opens.

Step-by-Step Procedure

To create a new Machine Design, open the Create Machine Design wizard and proceed as follows:

1. Create Machine Design Page
2. On the Create Machine Design page, the general settings are defined.
3. Enter the Name, Package, and ARXML File of the Machine Design to be created.
4. Click [Next >] to confirm your settings and to continue with modeling the SOME/IP Service Discovery and Network Endpoints.
   Click [Finish] to close the wizard without modeling the SOME/IP Service Discovery and Network Endpoints.

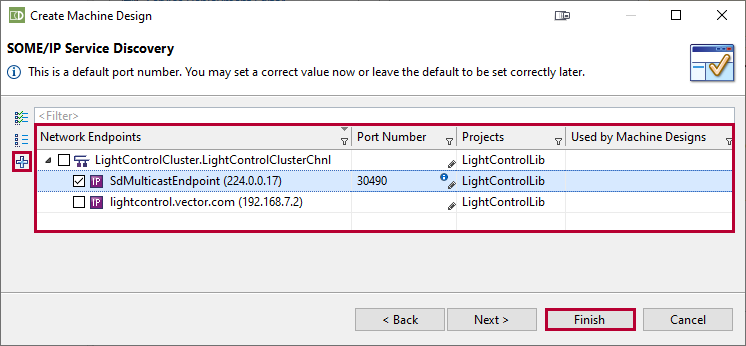

2. SOME/IP Service Discovery Page
3. On the SOME/IP Service Discovery page, you can specify the Network Endpoints (i.e. IP address) and port number that are used to publish the services of the resulting Machine. In the table, the following information on existing Network Endpoints is shown:
4. The column Network Endpoints lists the Network Endpoints below their parent Ethernet Physical Channels.
5. In the column Port Number, you can edit the port number for each selected Network Endpoint.
6. The column Projects shows the project in the workspace to which the respective Ethernet Physical Channel/Network Endpoint belongs to.
7. The column Used by Machine Designs shows if a Network Endpoint is already used by another Machine Design.
8. Activate the check boxes of the Network Endpoints of the Machine that are used to publish services.
   To create a new NetworkEndpoint, click the New Network Endpoint icon and follow the Create Network Endpoint wizard.
9. Click [Next >] to confirm your selection and to continue with modeling the Network Endpoints.
   Click [Finish] to close the wizard without modeling the Network Endpoints.
10.

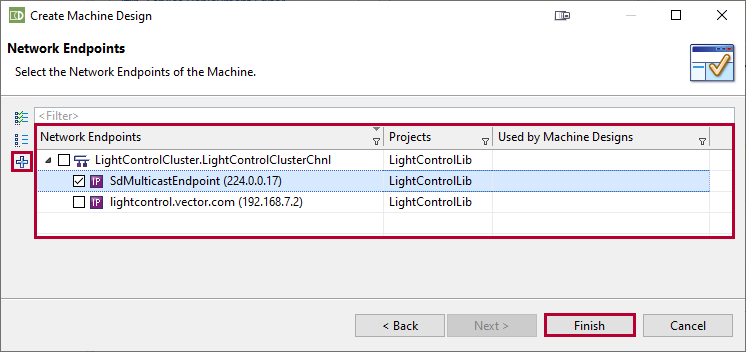

3. Network Endpoints Page
4. On the Network Endpoints page, you can specify the Network Endpoints (i.e. IP address) used by the resulting Machine for communication. In the table, the following information on existing Network Endpoints is shown:
• The column Network Endpoints lists the Network Endpoints below their parent Ethernet Physical Channels.
• The column Projects shows the project in the workspace to which the respective Ethernet Physical Channel/Network Endpoint belongs to.
• The column Used by Machine Designs shows if a Network Endpoint is already used by another Machine Design.
5. Activate the check boxes of the Network Endpoints of the Machine that are used for communication.
   To create a new Network Endpoint, click the New Network Endpoint icon and follow the Create Network Endpoint wizard.
6. Click [Finish] to close the wizard.
7.

The new Machine Design has been created.
