Post-build Selectable

Model Views

What Model Views Are

After project load, the MDF model contains all objects found in the ARXML files. Variation points are just data structures in the model without any special meaning in MDF.

If you want to deal with variants, you must use model views. A model view filters access to the MDF model based on the variant definition and the variation points.

There is one model view per variant. If you use this variant’s model view, the MDF model filters exactly what this variant contains. All other objects become invisible. When you retrieve parameters of a container for example, you’ll see only parameters contained in your selected variant.

Show how to check whether a parameter is visible

final boolean isVisible = viewMgr.isVisible(t.paramVariantA);

The IModelViewManager Project Service

The IModelViewManager handles model visibility in general. It provides the following means:

Get all available variants
Execute code with visibility of a specific predefined variant only. This means your code sees all objects contained in the specified variant. All objects which are not contained in this variant will be invisible
Execute code with visibility of invariant data only (see IInvariantView).
Execute code with unfiltered model visibility. This means that your code sees all objects unconditionally. If the project contains variant data, you see all variants together

It additionally provides detailed visibility information for single model objects:

Get all variants, a specific object is visible in
Find out if an object is visible in a specific variant

Get all available variants

final List<IPostBuildPredefinedVariantView> variants = viewMgr.getAllPostBuildVariantViews();

Get all available variants or invariant view

final List<IPostBuildView> allVaraintsOrInvariantView = viewMgr.getAllPostBuildVariantViewsOrInvariant();

Execute code with variant visibility

try (final IModelViewExecutionContext context = viewMgr.executeWithModelView(t.variantViewA)) {
    assertIsVisible(t.paramInvariant);
    assertIsVisible(t.paramVariantA);
    assertNotVisible(t.paramVariantB);
}

try (final IModelViewExecutionContext context = viewMgr.executeWithModelView(t.variantViewB)) {
    assertIsVisible(t.paramInvariant);
    assertNotVisible(t.paramVariantA);
    assertIsVisible(t.paramVariantB);
}

Important remark: It is essential that the execute…() methods are used exactly as implemented in the listing above. The try (…) {…} construct is a Java 7 feature which guarantees that resources are closed whenever the try block is being left. For details read: Java try-with-resources

Get only visible variants

Collection<IPostBuildPredefinedVariantView> visibleVariants = viewMgr.getVisiblePostBuildVariantViews(t.paramInvariant);
assertThat(visibleVariants.size(), equalTo(2));
assertThat(visibleVariants, containsInAnyOrder(t.variantViewA, t.variantViewB));

visibleVariants = viewMgr.getVisiblePostBuildVariantViews(t.paramVariantA);
assertThat(visibleVariants.size(), equalTo(1));
assertThat(visibleVariants, containsInAnyOrder(t.variantViewA));

Variant Siblings

Variant siblings of an MDF object are MDF object instances which represent the same object but in other variants.

The method IModelVarianceAccessPublished.getPostBuildVariantSiblings() provides access to these sibling objects:

This method returns MDF object instances representing the same object but in all variants. The collection returned contains the object itself including all siblings from other PostBuild variants. The calculation of siblings depends on the object-type as follows:

Ecuc Module Configuration:
Since module configurations are never variant, this method always returns a collection which contains the specified object only
Ecuc Container:
For siblings of a container all of the following conditions apply:
- They have the same AUTOSAR path
- They have the same definition path (containers with the same AUTOSAR path but different definitions may occur in variant models - but they are not variant siblings because they differ in type)
Ecuc Parameter:
For siblings of a parameter all of the following conditions apply:
- The parent containers have the same AUTOSAR path
- The parameter siblings have the same definition path
The parameter values are not relevant so parameter siblings may have different values.
Multi-instance parameters are special. In this case the method returns all multi-instance siblings of all variants.
System description object:
For siblings of MIReferrables all of the following conditions apply:
- They have the same meta-class
- They have the same AUTOSAR path
For siblings of non-MIReferrables all of the following conditions apply:
- Their nearest MIReferrable-parents are either the same object or variant siblings
- Their containment feature paths below these nearest MIReferrable-parents is equal

Special use cases: When the specified object is not a member of the model tree (the object itself or one of its parents has no parent), it also has no siblings. In this case this method returns a collection containing the specified object only.

Remark concerning visibility: This method returns all siblings independent of the currently visible objects. This means that the returned collection probably contains objects which are not visible by the caller! It also means that the specified object itself doesn't need to be visible for the caller.

The Invariant Model Views

There are use cases which require to see the invariant model content only. One example are generators for modules which don’t support variance at all.

There are two different invariant views currently defined:

Value based invariance (values are equal in all variants): The `IPostBuildInvariantValuesView`contains objects where all variant siblings have the same value and exist in all variants.
Definition based invariance (values which shall be equal in all variants): The`IPostBuildInvariantEcucDefView` contains objects which are not allowed to be variantaccording to the BSWMD rules.

All Invariant views derive from the same interface IInvariantView, so if you want to use an invariant view without specifying the exact view, you could use the IInvariantView interface.

The Invariant model views

There are use cases which require to see the invariant model content only. One example are generators for modules which don't support variance at all.

There are two different invariant views currently defined:

Value based invariance (values are equal in all variants):
The IPostBuildInvariantValuesView contains objects were all variant siblings have the same value and exist in all variants.
Definition based invariance (values which shall be equal in all variants):
The IPostBuildInvariantEcucDefView contains objects which are not allowed to be variant according to the BSWMD rules.

All Invariant views derive from the same interface IInvariantView, so if you want to use an invariant view and not specifying the exact view, you could use the IInvariantView interface. The figure InvaraintViews describes the hierarchy.

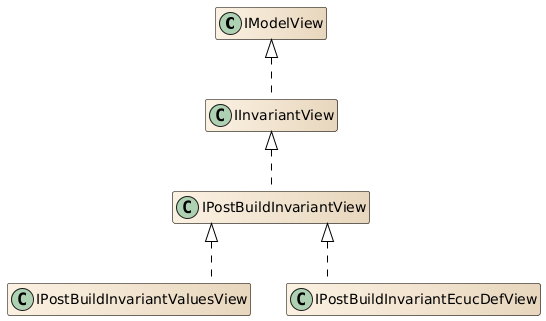

Figure 1. Invariant views hierarchy

The PostBuild InvariantValues model view

The IPostBuildInvariantValuesView contains only elements which have one of the following properties:

The element and no parent has any MIVariationPoint with a post-build condition
All variant siblings have the same value and exist in all variants. Then one of the siblings is contained in the IPostBuildInvariantValuesView

So the semantic of the InvariantValues model view is that all values are equal in all variants. You could retrieve an instance of IPostBuildInvariantValuesView by calling IModelViewManager.getPostBuildInvariantValuesView().

IModelViewManager viewMgr =...;
IPostBuildInvariantValuesView invariantView = viewMgr.getPostBuildInvariantValuesView();
// Use the invariantView like any other model view

Example

The figure InvariantValuesExample describes an example for a module with containers and the visibility in the IPostBuildInvariantValuesView.

Container A is invisible because it is contained in variant 1 only
Container B and C are visible because they are contained in all variants
Parameter a is visible because it is contained in all variants with the same value
Parameter b is invisible: It is contained in all variants but with different values
Parameter c is invisible because it is contained in variant 3 only

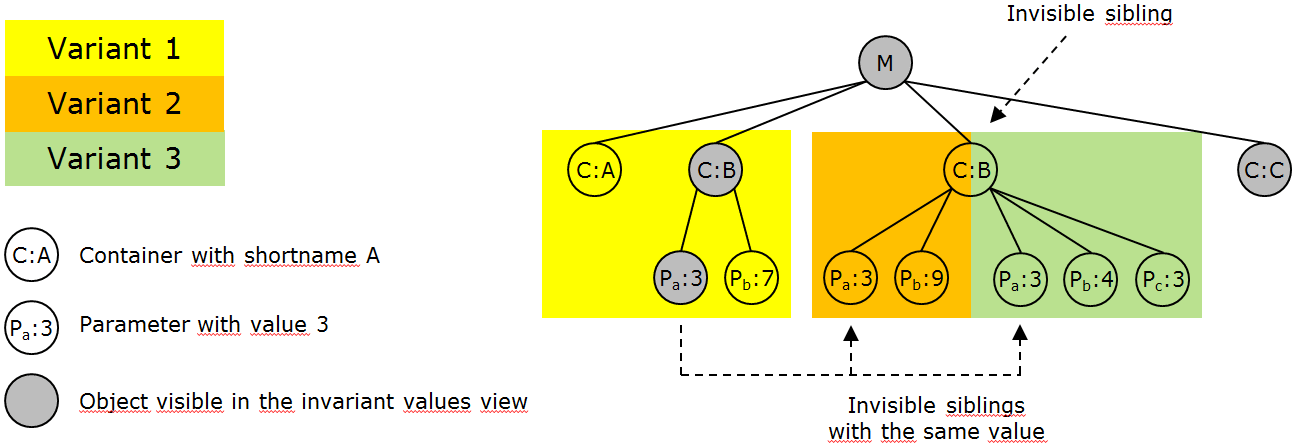

Figure 2. Example of a model structure and the visibility of the IPostBuildInvariantValuesView

Specification

See internal design documents in SharePoint for details of the IPostBuildInvariantValuesView.

The PostBuild Invariant EcuC definition model view

The IPostBuildInvariantEcucDefView contains the same objects as the invariant values view but additionally excludes all objects which, by (EcuC / BSWMD) definition, support variance. Using this view you can avoid dealing with objects which are accidentally equal by value (in your test configurations) but potentially can be different because they support variance.

More exact the IPostBuildInvariantEcucDefView will additionally exclude elements which have the following properties:

If the parent module configuration specifies VARIANT-POST-BUILD-SELECTABLE as implementation configuration variant
- All objects ( MIContainer, MINumericalValue, ...) are excluded, which support variance according to their EcuC definition. (potentially variant objects)
If the parent module configuration doesn't specify VARIANT-POST-BUILD-SELECTABLE as implementation configuration variant. All contained objects do not support variance, so the view actually shows the same objects as the IPostBuildInvariantValuesView.

The implementation configuration variant in fact overwrites the objects definition for elements in the ModuleConfiguration.

Reasons to Use the view

The EcucDef view guarantees that you don't access potentially variant data without using variant specific model views. So it allows you to improve code quality in your generator.

When your test configuration for example contains equal values for a parameter which is potentially variant you will see this parameter in the invariant values view but not in the EcucDef view. Consequences if you access data in other module configurations: When the BSWMD file of this other module is being changed, e.g. a parameter now supports variance, objects can become invisible due to this change. You are forced to adapt your code then.

Usage

You could retrieve an instance of IPostBuildInvariantEcucDefView by calling IModelViewManager.getPostBuildInvariantEcucDefView(). And then use it as any other IModelView.

IModelViewManager viewMgr =...;
IPostBuildInvariantEcucDefView invariantView = viewMgr.getPostBuildInvariantEcucDefView();
// Use the invariantView like any other model view

Specification

See internal design documents in SharePoint for details of the IPostBuildInvariantEcucDefView.

Accessing Invisible Objects

When you switch to a model view, objects which are not contained in the related variant become invisible. This means that access to their content leads to an InvisibleVariantObjectFeatureException.

To simplify handling of invisible objects, some model services provide model access even for invisible objects in variant projects. The affected classes and interfaces are:

com.vector.cfg.model.asr.ecuc.access.IEcucReferrableAccess
com.vector.cfg.model.asr.ecuc.access.IEcucModelAccess
com.vector.cfg.model.asr.ecuc.compare.IModelEquivalenceService
com.vector.cfg.model.access.AsrPath
com.vector.cfg.model.access.DefRef
com.vector.cfg.model.asr.ecuc.access.ecucdefinition.IEcucDefinitionAccess (all methods which deal with configuration side objects)

Only a subset of the methods in these services work with invisible objects (read the methods JavaDoc for details). The general policy to select exactly these methods was:

Support access to type and object identity of MDF objects (definition and AUTOSAR path)
Parameter value or other content related information must still be retrieved in a context the object is visible in
Also not contained are methods which change model content. E.g. deleting invisible objects, set parameter values, ...

IViewedModelObject

The IViewedModelObject is a container for one MIObject and an IModelView that was used when viewing the MIObject.

The interface provides getter for the MIObject, and the IModelView which was active during creation of the IViewedModelObject. So the IViewedModelObject represents a tuple of MIObject and IModelView. This could be used to preserve the state/tuple of a MIObject and IModelView, for later retrieval.

Examples:

BswmdModel objects
Elements for validation results, retrieved in a certain view
Model Query API like ModelTraverser, to preserve IModelView information

Notes:
A IViewedModelObject is immutable and will not update any state. Especially not when the visibility of the getMdfObject(), is changed after the construction of the IViewedModelObject.

It is not guaranteed, that the MIObject is visible in the creation IModelView, after the model is changed. It is also possible to create an IViewedModelObject of a MIObject and a IModelView, where the MIObject is invisible.

The method getCreationModelView() returns the IModelView of the IViewedModelObject, which was active when the model object was viewed IViewedModelObject.

Default Model View

Default model view when nothing is set is the IPostBuildInvariantValuesView.

Figure 3. Invariant views hierarchy

Figure 4. Example of a model structure and visibility of IPostBuildInvariantValuesView

Change Modes

Variant Specific Model Changes

The data model provides an execution context which guarantees that only the selected variant is being modified. Objects which are visible in more than one variant are cloned automatically. The clones and the object which is being modified (or their parents) automatically get a variation point with the required post-build conditions. The following picture shows how this execution context works:
See figure VariantSpecificModelChangeOfParameter.

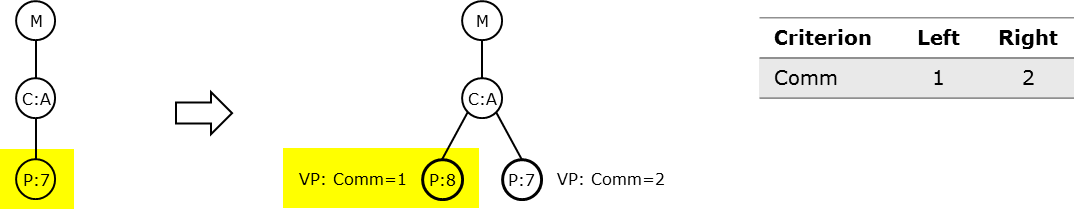

Figure 5. Variant specific change of a parameter value

Before modifying the parameter, this instance is invariant. The same MDF instance is visible in all variants
When the client code changes the parameter value, the model automatically clones the parameter first
Only the parameter instance which is visible in the currently active view is being modified. The content of other variants stays untouched

Remark: This change mode is implicitly turned off when executing code in the IInvariantView or in an unfiltered context.

Execute variant specific changes

try (final IModelViewExecutionContext viewContext = viewMgr.executeWithModelView(variantView)) {
    try (final IModelViewExecutionContext modeContext = viewMgr.executeWithVariantSpecificModelChanges()) {
        ma.setAsString(parameter, "Vector-Informatik");
    }
}

Figure 6. Variant specific change of a parameter value

Variant Common Model Changes

The data model provides an execution context which guarantees that model objects are modified in all variants.

The behavior of this mode depends on the mode flag parameter as follows:

mode == ALL : All parameters and containers are affected
mode == DEFINITION_BASED (default): Only those parameters and containers are affected which do not support variance (according to their definition in the BSWMD file and the implementation configuration variant of their module configuration)
mode == OFF : Doesn't turn on this change mode (this value is used internally only)

Remark: This method doesn't allow to reduce the scope of this change mode. So if ALL is already set, this method doesn't permit to use DEFINITION_BASED (or OFF) to reduce the effective amount of objects. ALL will be still active then.

The following picture shows how this execution context works:
See figure VariantCommonModelChangeOfParameter.

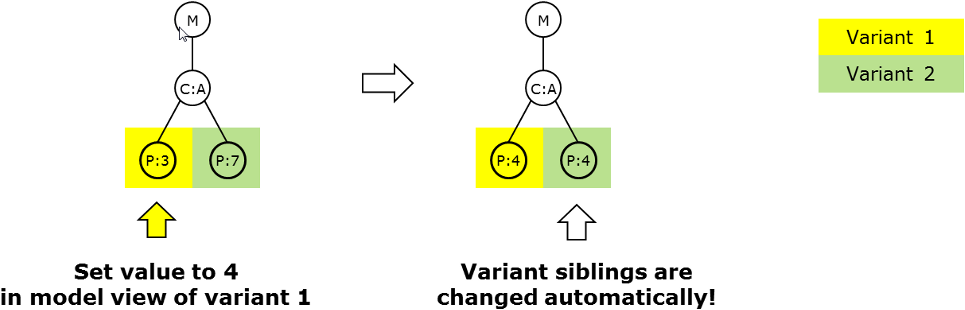

Figure 7. Variant common change of a parameter value

We start with a variant model which contains one parameter in two instances - one per variant - with the values 3 and 7
When the client code sets the parameter value in variant 1 to 4, the model automatically modifies the variant sibling in variant 2
As a result, the parameter has the same value in all variants

This change mode works with parameters and containers. The following operations are supported:

Container/parameter creation: The created object afterwards exists in all variants the related parent exists in. Already existing objects are not modified. Missing objects are created
Container/parameter deletion: The deleted object afterwards is being removed from all variants the related parent exists in. So actually all variant siblings are deleted
Parameter value change: The parameter exists and has the same value in all variants the parent container exists in. If a parameter instance is missing in a variant, it is being created

Special behavior for multi-instance parameters:

This mode guarantees that a set of multi-instance parameters is equal in all variants
Only the values of multi-instance parameters are relevant. Their order can be different in different variants
Beside the values, this change mode guarantees that all variants contain the same number of parameter instances. So, when a multi-instance set is being modified in a variant view, this change mode creates or deletes objects in other variants to guarantee an equal number of instances in all variant sibling sets

Remark: This change mode is implicitly turned on with the mode flag ALL when code is being executed in the IInvariantView. It is being ignored implicitly when executing code in an unfiltered context.

Figure 8. Variant common change of a parameter value
