System Description and StructuredExtract

The MDF model in the configurator comprises the full model as defined by AUTOSAR. The SIModel instead describes a selected subset of the AUTOSAR model and differs in certain aspects from the raw AUTOSAR modeling. Both should improve the client experience in regard to simpleness and comfort.

A detailed introduction to the MDF model is available in MDF Model Raw.

All SIModel objects are anchored to at least one MDF object: this can be retrieved by means of the SIModelObject.getMdfObject() method and is properly typed for the SIModel subtypes. This allows for an easy transition to the full AUTOSAR model for all features or data structures of AUTOSAR which are not directly supported by the SIModel. Since the SIModel is modeled closely after the AUTOSAR model, the anchor MDF object is often directly mappable to an SIModelObject: in more abstracted modeling it might be a more generic MDF object as shown in Figure SIModelAnchorExamples:

• A direct mapping is e.g. the SIRunnableEntity: it is anchored to the MIRunnableEntity
• A more abstracted mapping is e.g. the SIComponent: it is anchored generically to MIIdentifiable, as we also support the top-level composition type modeled as the SICompositionComponentSubstitute, a subtype of SIComponent.

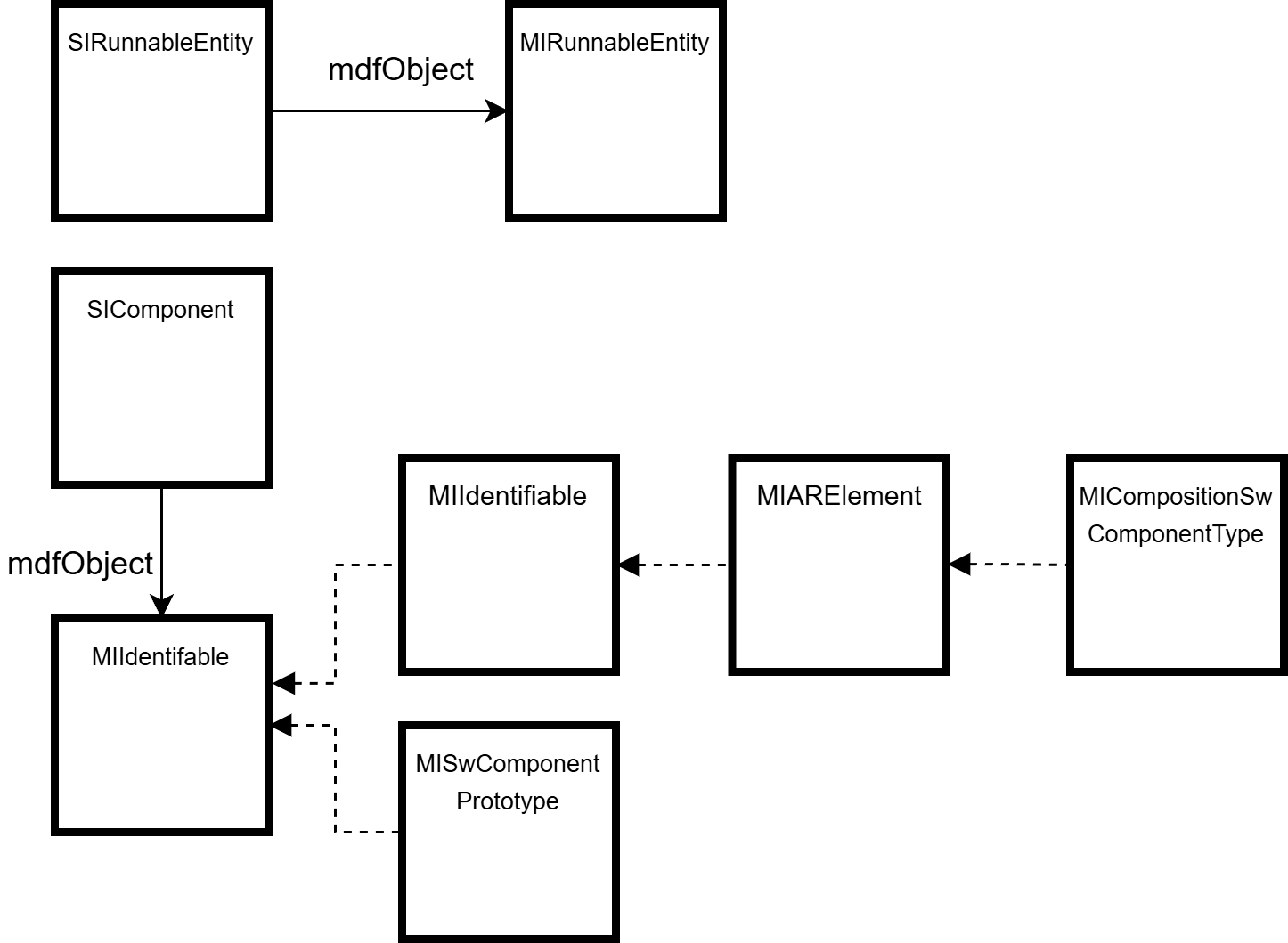

Figure 2. Examples of SIModel anchors

Since the AUTOSAR model is - in general - a file-related exchange format (ARXML) with backwards compatibility and directly represented by the MDF model, some modeling is not perfectly suited for representing the business-logic of AUTOSAR for client usage. The SIModel as a facade model can improve this situation by additional business methods and adapted modeling approaches for better client-usage.

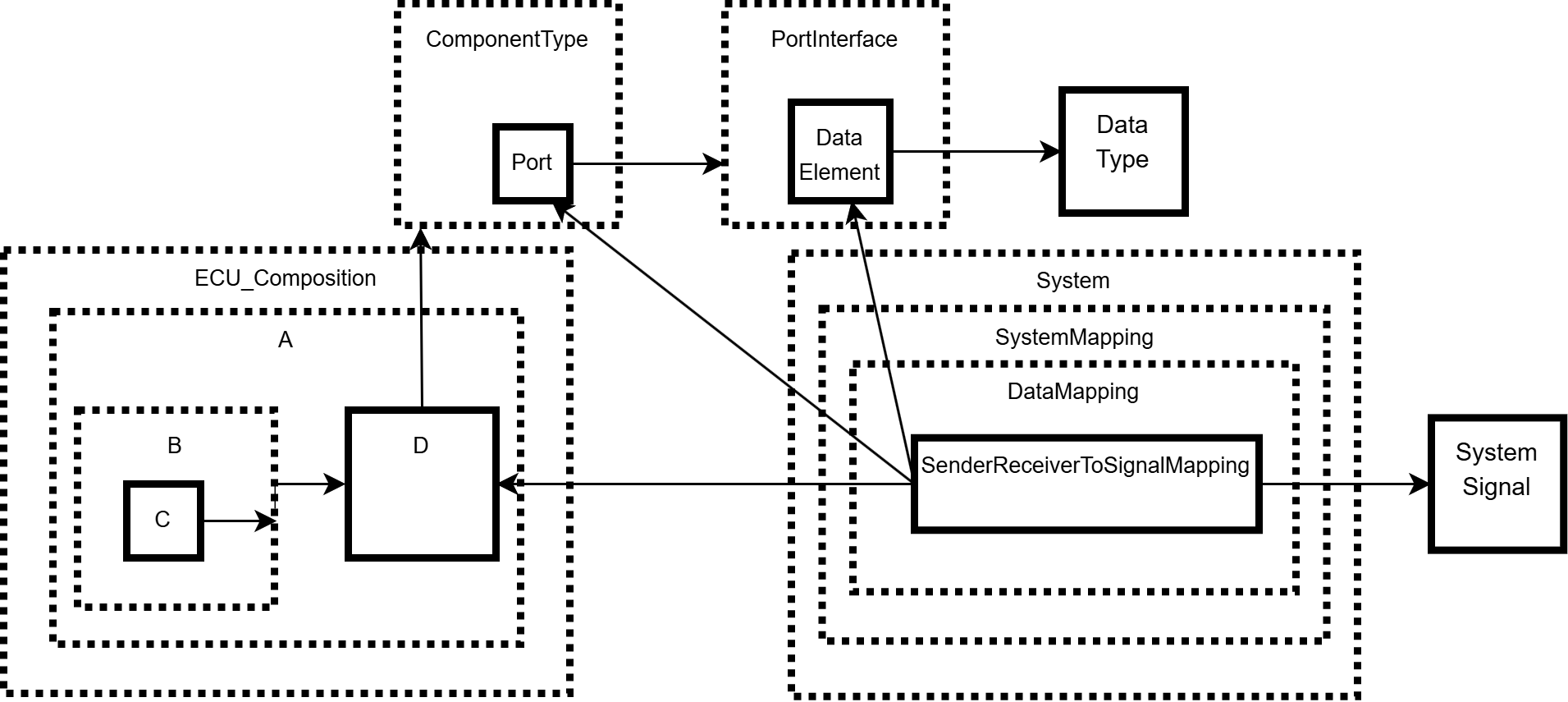

Figure DataMappingAnchors shows a simplified depiction of data mapping in AUTOSAR. The System contains the data mapping which maps between the data element of a component and a system signal.

Figure 3. DataMapping in the AUTOSAR model

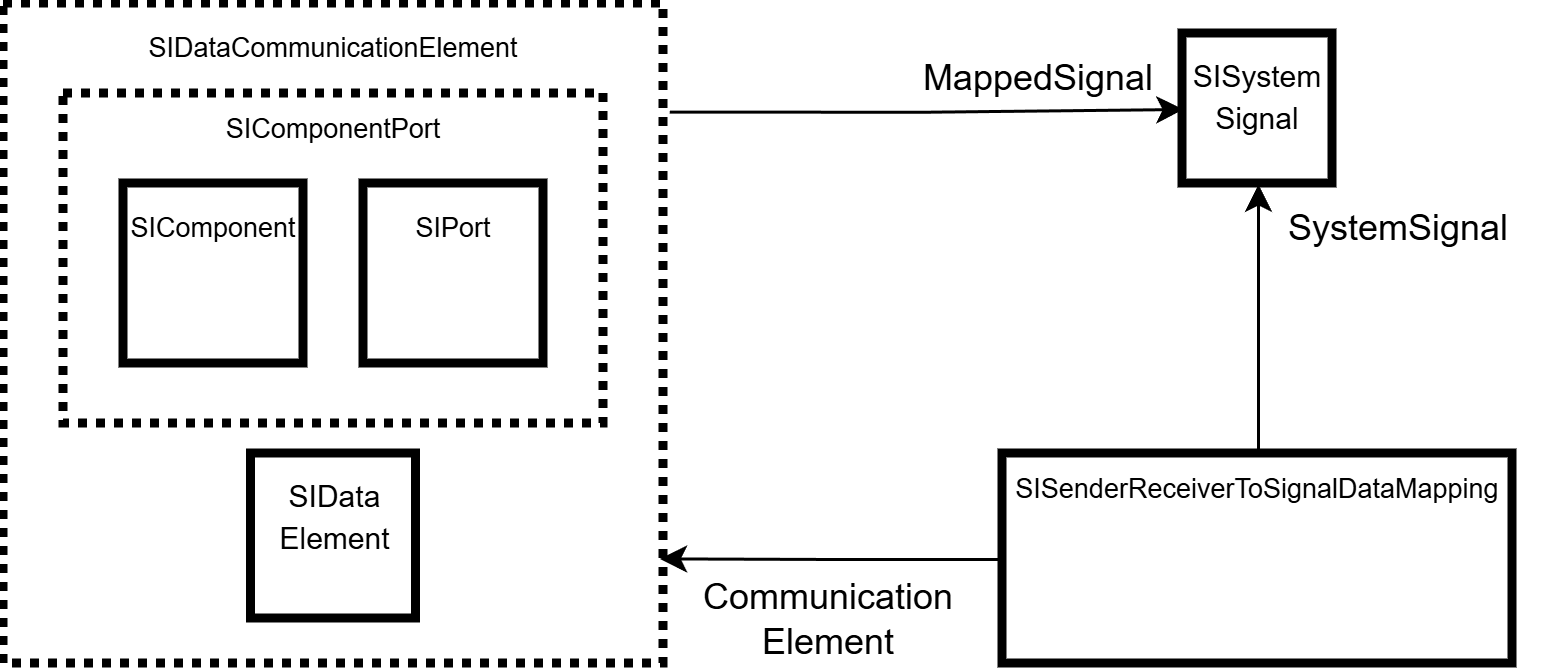

Figure DataMappingInSIModel shows the simplified modeling in the SIModel: usage of composition elements allows for a simpler relation, and a direct relation to the mapped system signal (getter AND setter) as well as an explicit data mapping element.

Figure 4. DataMapping in the SIModel

The sysDescModel-block is fluent API entry point for accessing the SIModel for the system description. It provides the same methods as the project service ISysDescService.

The ISysDescService project service is the central entry point for accessing the SIModel for the system description. It provides:

• the flat component view of the StructuredExtract via getFlatComponentView().
• the structured component view of the StructuredExtract via getStructuredComponentView().
• the StructuredExtract itself via getStructuredExtract().
• access to all StructuredExtracts for split use cases via getStructuredExtracts().
• access to the top-level composition of the structured extract via getStructuredExtractTopLevelComposition().
• generic access to a specific SIModel-object via getSIModelObject(AsrPath) or getSIModelObject(MIObject).
• generic access to all instances of a certain SIModel-type via getAllInstancesOfType(Class, EInstanceFiltering).
• the AUTOSAR root element via getAutosarRoot().
• the preparation for StructuredExtract-usage in case no or an incomplete structured extract is provided externally via prepareStructuredExtractUsage().
• access to the SIFlatMap and its SIFlatInstanceDescriptors via getFlatMap().
• additional convenience-methods for structured extract usage.

AUTOSAR describes the relation between the System with category SYSTEM_DESCRIPTION and the System with category ECU_EXTRACT as follows:

'AUTOSAR VFB Descriptions naturally form hierarchies of CompositionSwComponentTypes. Consequently, in the System Configuration the SWC-related information for different EcuInstances is not separated but in general is intermingled. In contrast, for the task of ECU configuration (RTE configuration, Service Configuration, Measurement and Calibration) a hierarchically “flat view” on the SwComponentPrototypes running on the EcuInstances is preferable over a hierarchical view, which is more favored by application-software development. Thus, deriving an System with category ECU_EXTRACT actually is a model transformation, following a set of rules.'

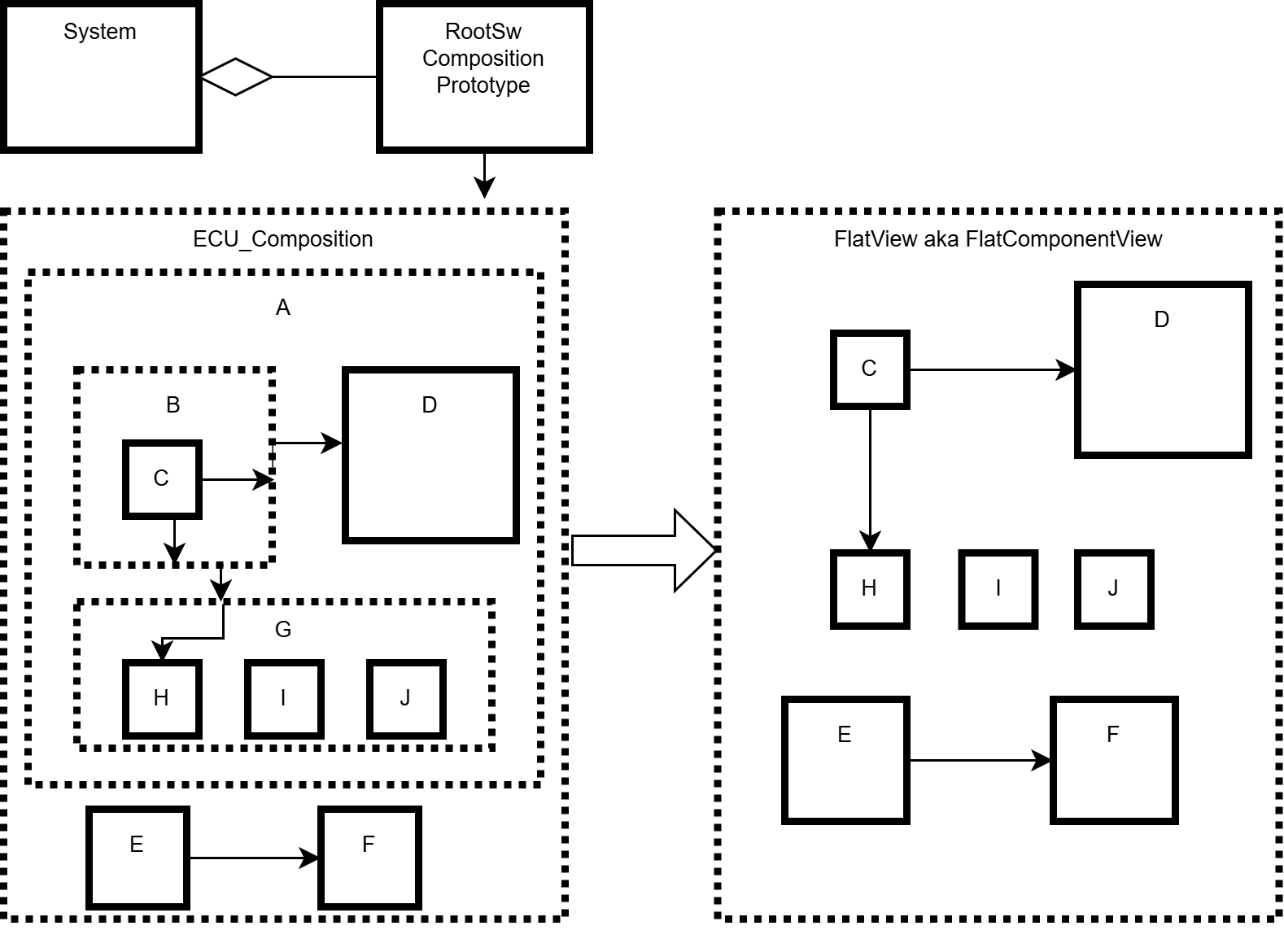

This transformation (example shown in Figure StructuredExtractAndFlatView) is provided via two APIs. ISysDescService.getFlatComponentView() provides the view of the software components, and SIComponentPort.getFlatViewConnectedPorts() provides the view of their connections. The flattening is done virtually, so each SIComponent has its full hierarchy information provided via SIComponent.getContext(). The details of the context concept is described in chapter ContextAndCompositionComponentSubstitute.

Beside the flat component view - which only contains atomic software components as defined by AUTOSAR - the ISysDescService also provides a full list of software components which contains all components of composition types and the top-level composition itself via ISysDescService.getStructuredComponentView()

The components in both lists provide their full hierarchy context. Since the shortname of a component may not be unique anymore in the hierarchy - either by choosing the same name for a component in different compositions or by multi-instantiation of the same composition - the according SIComponent provides a unique name in the hierarchy via SIComponent.getUniqueSwcNameInHierarchy().

Component-Instantiation in general is possible in all composition types. The SIModel works with feature-lists which provide according createAndAdd-methods for the actual list content. The most common use-case is to instantiate an atomic software component type in the top-level composition of the structured extract. Listing ComponentInstantiationExample shows an example where an application software component type is retrieved and instantiated as software component prototype in the top-level composition.

transaction {
   sysDescModel {
      // retrieve the application component type
      SIApplicationComponentType applicationComponentType = siModelObject(AsrPath.create("/a/b/c/MyApplicationSwcType")).orElse(null)

      // retrieve the top-level composition
      SICompositionComponentSubstitute topLevelComposition = structuredExtractTopLevelComposition.orElse(null)

      if (applicationComponentType != null && topLevelComposition != null) {

          // instantiate the component type by creating and adding a component to the top-level composition component feature-list
          SIApplicationComponent myComponent = topLevelComposition.component
                  .createAndAdd("MyComponent", SIApplicationComponent.class, applicationComponentType)

      }

  }
}

Working on a structured extract implies challenges regarding the software composition hierarchy, connections between and instance references to dedicated software components nested inside the hierarchy. Therefore, the SIModel facades introduce the SICompositionComponentSubstitute to represent the top-level composition of a composition hierarchy.

For all SIComponents obtained as children of an SICompositionComponentSubstitute, their SIComponent.getContext() method provides the full nesting hierarchy of compositions up to the SICompositionComponentSubstitute. For example, the context lists for the structured extract shown in Figure StructuredExtractAndFlatView can be illustrated as in Figure FlatViewComponentsWithContext.

This has the following advantages and implications:

• The SICompositionComponentSubstitute allows to handle a top-level composition the same way as a component.
• Traversing the software composition hierarchy via an SICompositionComponentSubstitute ensures correct contexts for each contained SIComponent.
• The context of a component is a list always starting with the top-level SICompositionComponentSubstitute, followed by all SICompositionComponents in the hierarchy.
• All SIComponentPorts retrieved via SIComponent.getComponentPort() with full context can be connected via IConnectionBuilder without a caller having to consider the composition hierarchy (see ConnectionBuilder).
• SICommunicationElements retrieved from SIComponentPort with full context can be used as target for SIDataMapping.setCommunicationElement(SICommunicationElement) to components nested in the hierarchy.
• ISysDescService.getFlatComponentView() and ISysDescService.getStructuredComponentView() each provide flat lists of all components in the hierarchy, with contexts set correctly for the ISysDescService.getStructuredExtract().

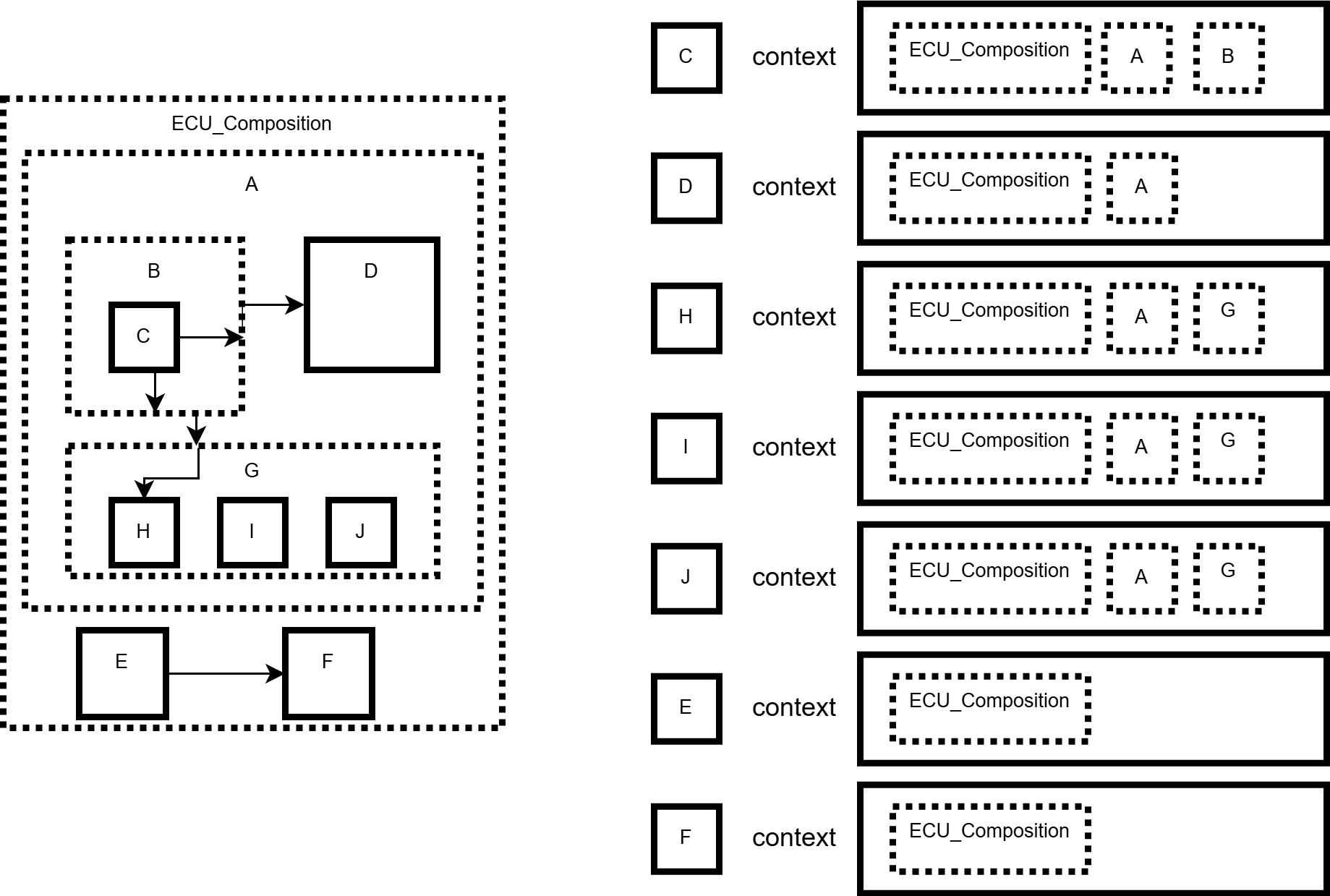

Figure 5. FlatViewComponents with context

The SIComponentPort facade represents a port prototype bound to an actual component prototype: in AUTOSAR, this relation is only represented by an instance-reference e.g. to identify the requester and provider port of an assembly connector. In combination with the full context of the bound SIComponent, this allows to build connections between arbitrary SIComponentPorts: therefore the SIModel provides the IConnectionBuilder to define connections with an appropriate provisioning of additional properties.

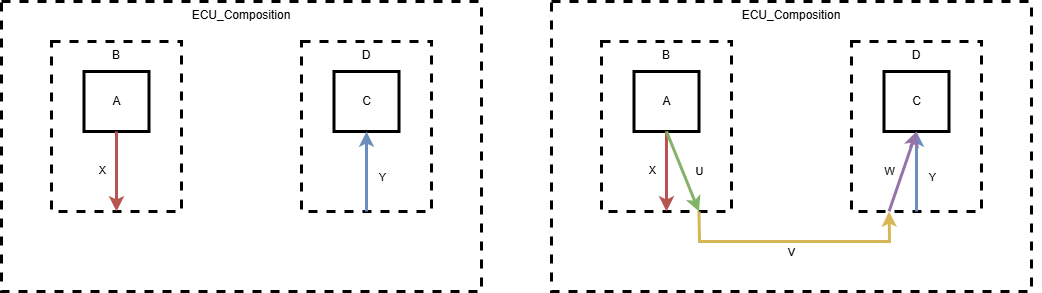

IConnectionBuilder offers means to create connections between arbitrary ports in a hierarchical model. It will automatically find all compositions that need to be traversed by the connection and eventually create the required ports and connectors. Figure connectToSimpleCase shows an example for such a connection. Please note that no existing connectors or ports are reused by default.

Figure 6. An example for how the API IConnectionBuilder connects ports when no optimization is enabled. On the left, the model in its original state is shown. A connection between components A and C is then created. The right hand graphic shows the model with the new connection. No connectors or ports are reused.

IConnectionBuilder offers optional optimizations that influence how and which connectors are created. Currently, only one optimization is available. It enables reusing connectors and ports that are already part of the model.

Using the optimization BASIC_DANGLING_CHAINS the builder can be told to reuse matching connectors that are already present. This can be especially useful when modifying a preexisting model.

The algorithm collects dangling connector chains that are non-branching and use consistent port interfaces. Such a chain of connectors starts at either of the ports to be connected, and terminates on an inner delegation port of the software component hierarchy. The connection is non-branching when no port inside the chain (i.e., all ports except for the start port and end port) connect to exactly two connectors. Port Interfaces are consistent when within any single chain, all ports share the same port interface, namely that of the starting port.

Out of the combinations of chains found from both ports to be connected, the algorithm selects one chain for each side to be reused, so that (a) neither chain contains an assembly connector and (b) the number of connectors to be added to complete the connection is minimal.

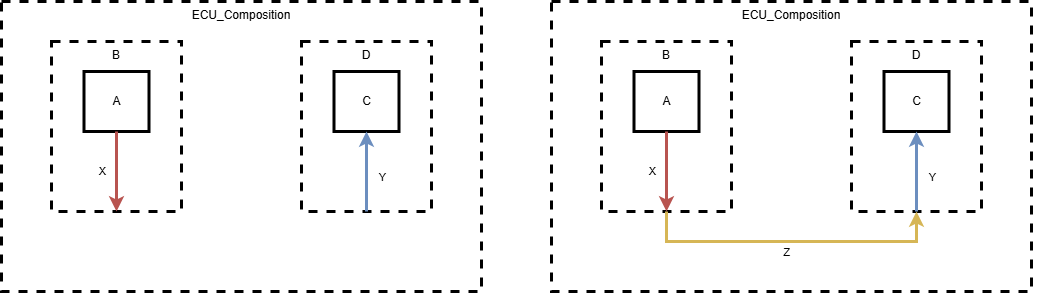

In Figure reusingDanglingChainsSimpleCase, a simple case of the dangling chain optimization is shown. Listing ConnectionBuilderExampleWithDanglingChainReuse shows how to enable the BASIC_DANGLING_CHAINS optimization when creating connections.

Figure 7. An example for how IConnectionBuilder reuses existing connectors and ports when the optimization BASIC DANGLING CHAINS is enabled. The left-hand graphic shows the model in its original state. A connection between application components A and C is to be created. On the right hand side, the resulting model is shown after the connection is created. Connectors X and Y as well as their ports are reused. Only the assembly connector Z is newly created.

Creating a connection generally involves fetching data from the model, planning the connectors to be created and then actually creating them. While the first of these three steps only implies (cache) read operations, the last step inherently leads to write operations in the model. As read operations in big models can be very costly, a cache is in place to soften these effects. The cache is invalidated with every model write operation. Rebuilding the caches can be a very time-consuming as well.

IConnectionBuilder offers a cache-friendly way to create connectors. The building procedure is split into the main steps IConnectionBuilder.prepare() and IPreparedConnectionBuilder.build(). In the prepare() step, all cache read accesses are performed. The result is an IPreparedConnectionBuilder instance that holds all the required information about the connectors to be created. When calling build() on that object, the actual connectors are created, leading to write operations in the model.

Note that the contents of an IPreparedConnectionBuilder are not verified (again) when executing IPreparedConnectionBuilder.build(). It is the responsibility of the user to ensure that no changes have been made to the model that would be incompatible with a given IPreparedConnectionBuilder.

The listing ConnectionBuilderExample shows an example of how to create the connections as seen in Figure StructuredExtractAndFlatView.

transaction {
  sysDescModel {
    // Prepare builderFactory, flat component view and retrieval functions
    final ISysDescBuilderFactory builderFactory = getProjectContext()
            .getService(ISysDescBuilderFactory.class)
    final List<SIComponent> flatComponentView = sysDescService
            .getFlatComponentView()
    final Function<String, SIComponent> getComponent =
            (name) -> flatComponentView.stream()
            .filter(comp -> comp.getName().equals(name))
            .findFirst().orElse(null)
    final BiFunction<String, SIComponent, SIComponentPort> getComponentPort =
            (name, comp) -> comp
            .getComponentPort().stream()
            .filter(compPort -> compPort.getPortName().equals(name))
            .findFirst().orElse(null)

    // Retrieve components to connect
    final SIComponent c = getComponent.apply("C")
    final SIComponent d = getComponent.apply("D")
    final SIComponent h = getComponent.apply("H")
    final SIComponent e = getComponent.apply("E")
    final SIComponent f = getComponent.apply("F")

    // The IConnectionBuilder can only bring performance gains when multiple
    // connections are to be created and when used in the intended way:
    // First prepare all connections in bulk, then actually create them in bulk.

    // Prepare the connectionBuilders. The preparations involve cache read
    // accesses. Perform all preparations at one go while the caches are hot.
    // A single write to the model will invalidate these caches.
    // The preparations do not need to be inside a transaction.
    final IPreparedConnectionBuilder builder1 = builderFactory
            .createConnectionBuilder()
            .setProviderPort(getComponentPort.apply("PPort1", c))
            .setRequesterPort(getComponentPort.apply("RPort", d))
            .prepare()
    final IPreparedConnectionBuilder builder2 = builderFactory
            .createConnectionBuilder()
            .setProviderPort(getComponentPort.apply("PPort2", c))
            .setRequesterPort(getComponentPort.apply("RPort", h))
            .prepare()
    final IPreparedConnectionBuilder builder3 = builderFactory
            .createConnectionBuilder()
            .setProviderPort(getComponentPort.apply("PPort", e))
            .setRequesterPort(getComponentPort.apply("RPort", f))
            .prepare()

    // Build the actual connections using the data gathered in the preparations.
    // Building a connection leads to a model write access that invalidates all
    // caches.
    final IConnectionData connection1 = builder1.build()
    final IConnectionData connection2 = builder2.build()
    final IConnectionData connection3 = builder3.build()
  }
}

transaction {
  sysDescModel {
    // Retrieve components to connect
    final SIComponent c = getComponent.apply("C")
    final SIComponent d = getComponent.apply("D")
    final SIComponent h = getComponent.apply("H")
    final SIComponent e = getComponent.apply("E")
    final SIComponent f = getComponent.apply("F")

    // Prepare the connectionBuilders. The preparations involve cache read
    // accesses. Perform all preparations at one go while the caches are hot.
    // A single write to the model will invalidate these caches.
    // The preparations do not need to be inside a transaction.
    final IPreparedConnectionBuilder builder1 = builderFactory
            .createConnectionBuilder()
            .setProviderPort(getComponentPort.apply("PPort1", c))
            .setRequesterPort(getComponentPort.apply("RPort", d))
            // Optimize by reusing existing dangling connector chains
            .enableOptimization(EConnectionBuilderOptimization.BASIC_DANGLING_CHAINS)
            .prepare()
    final IPreparedConnectionBuilder builder2 = builderFactory
            .createConnectionBuilder()
            .setProviderPort(getComponentPort.apply("PPort2", c))
            .setRequesterPort(getComponentPort.apply("RPort", h))
            // Optimize by reusing existing dangling connector chains
            .enableOptimization(EConnectionBuilderOptimization.BASIC_DANGLING_CHAINS)
            .prepare()
    final IPreparedConnectionBuilder builder3 = builderFactory
            .createConnectionBuilder()
            .setProviderPort(getComponentPort.apply("PPort", e))
            .setRequesterPort(getComponentPort.apply("RPort", f))
            .prepare()

    // Build the actual connections using the data gathered in the preparations.
    // Building a connection leads to a model write access that invalidates all
    // caches.
    final IConnectionData connection1 = builder1.build()
    final IConnectionData connection2 = builder2.build()
    final IConnectionData connection3 = builder3.build()
  }
}

AUTOSAR provides a general prototype-type pattern for instantiation: e.g. an instance is represented by an SwComponentPrototype and has a type relation to an SwComponentType: on SwComponentType level, according subtypes exist which specialize the component type. A similar pattern is used for ports: a PortPrototype represents an instance of a port interface and denotes the direction by the subtypes PPortPrototype, RPortPrototype and PRPortPrototype. The kind of interface is provided by the referenced port interface and its subtypes. Figure AUTOSARComponentPrototype shows this pattern for component prototypes.

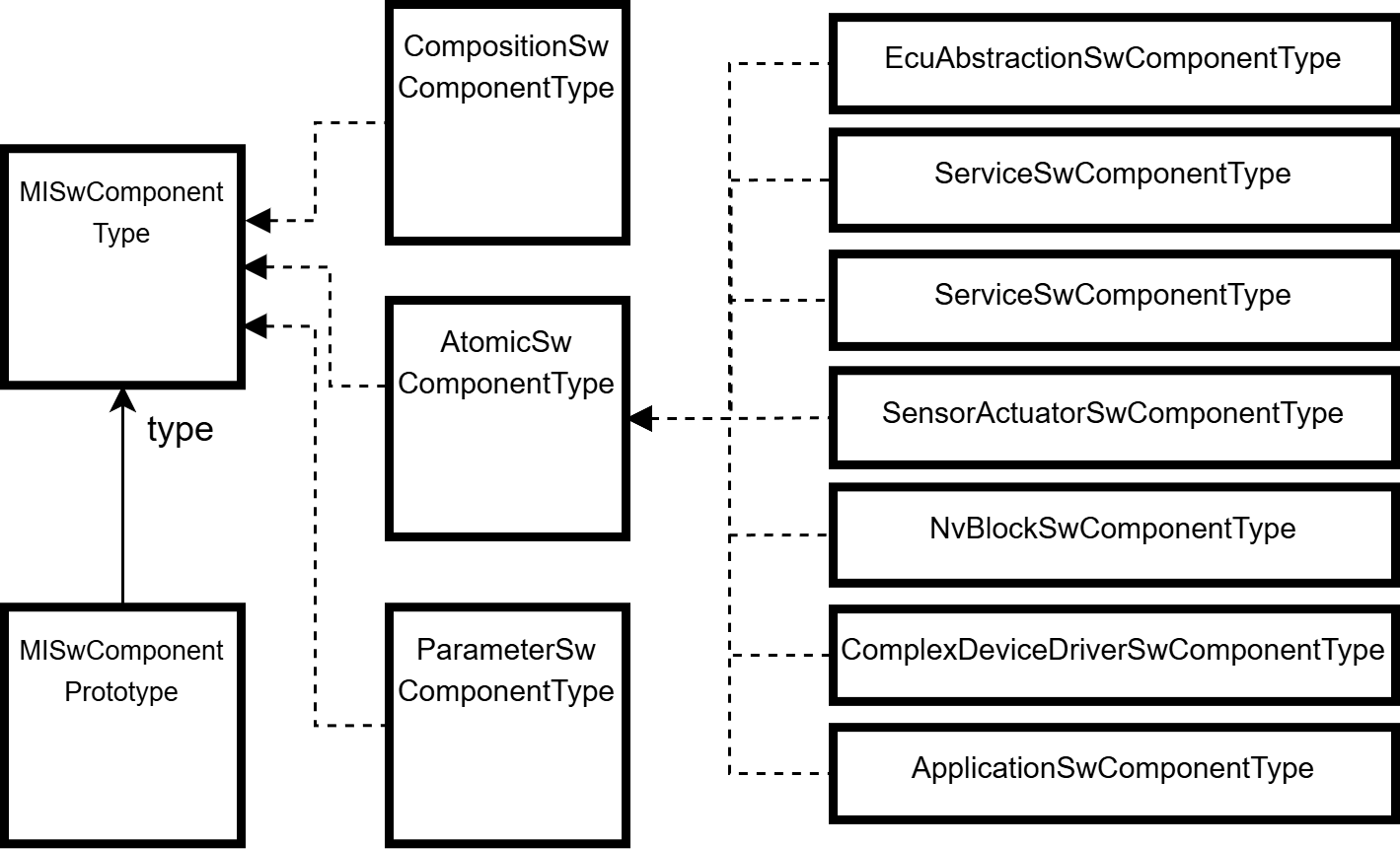

Figure 8. AUTOSAR SwComponentPrototype modeling

The SIModel enhances this pattern by expanding the prototype with typed instances. In addition to providing type safety regarding features of the component prototypes, this enables business functionality to be exposed directly on the prototype level, eliminating the need to navigate to the corresponding types. Figure SIModelComponentModeling shows this pattern.

Figure 9. SIModel Component modeling

Remark: this prototype expansion is a fast on-the-fly transformation evaluating the type reference: consider this when holding subtypes of SIComponent, SIPort or SIComponentPort for a longer time spanning model write transactions: changing the type relation on MDF level will break the type-safe subtypes: all internal caches of the SIModel consider this and will update themselves accordingly. Client code should consider to fetch the elements from scratch when appropriate.

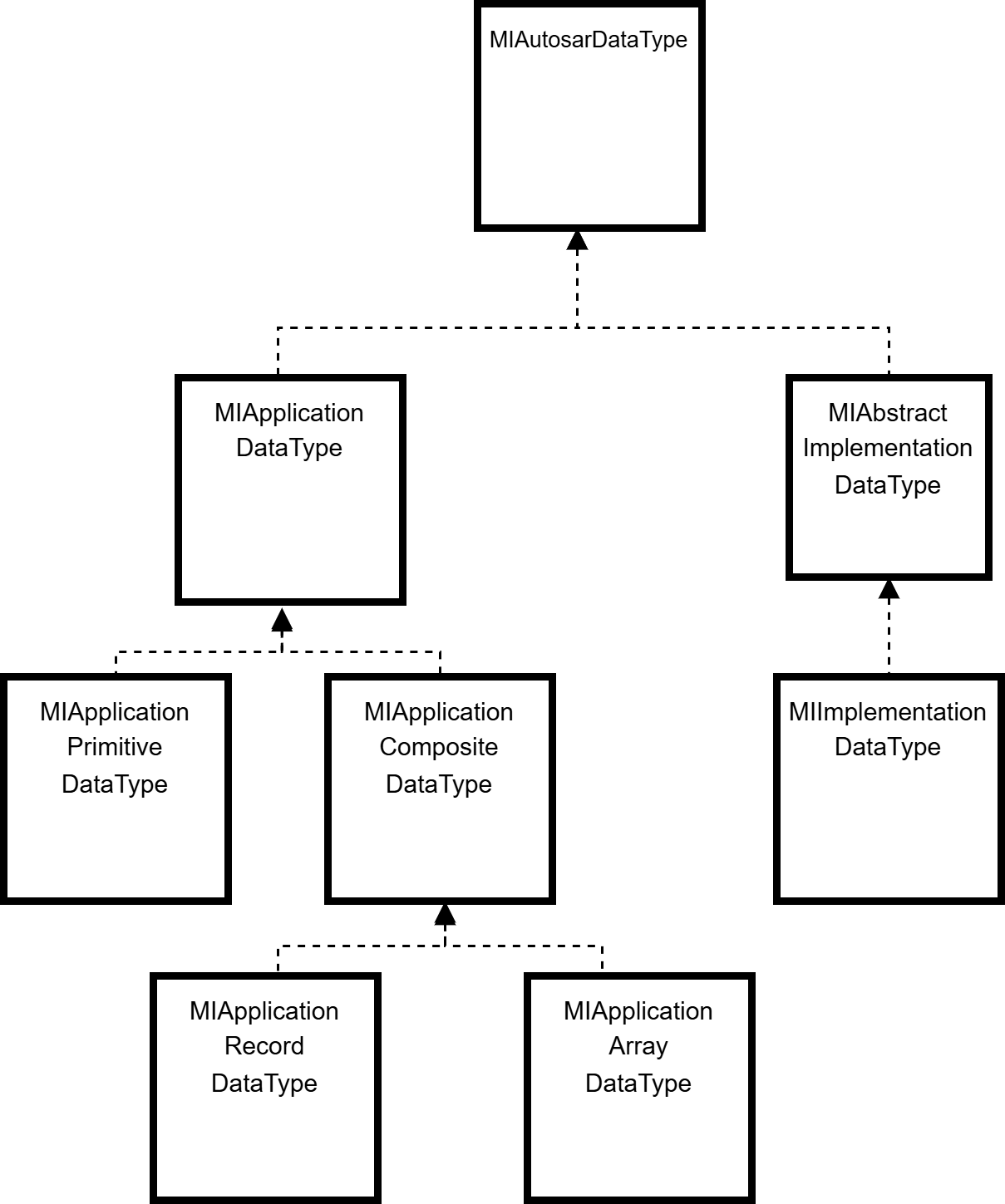

Data types in AUTOSAR are separated in two general categories: application data types and implementation data types. In general, application data types represent physical values like e.g. the speed of a vehicle in km/h, implementation data types represent well-defined internal data types of the Ecu, like e.g. an unsigned integer. The type hierarchy is depicted in AutosarDataTypes.

Figure 10. AUTOSAR data types

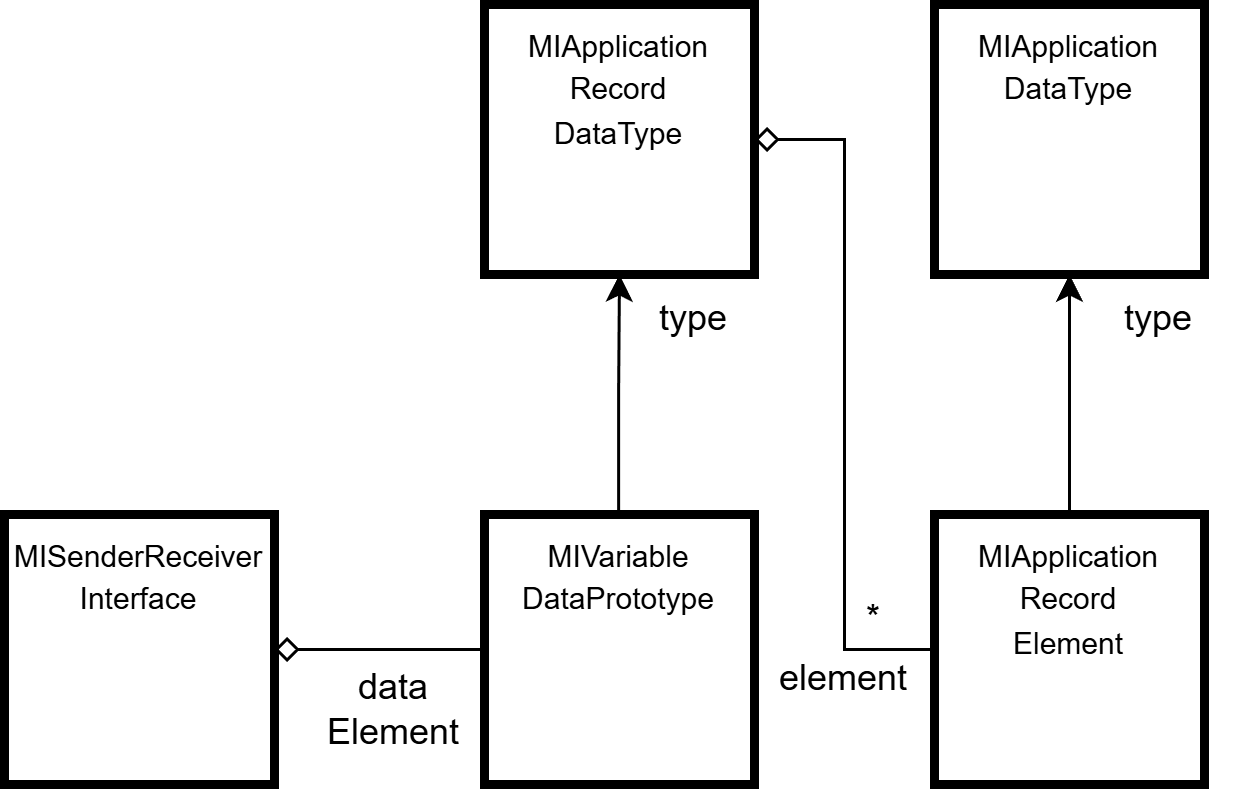

Application data types follow a strict prototype-type pattern, whereas implementation data types exist in two representations: either as data type to be referenced by a prototype, or as an implementation data type element, which represents prototype and type in one. An example of a Record datatype is shown in ApplicationRecordDataTypeExample for application data types, and in ImplementationRecordDataTypeExample for implementation data types.

Figure 11. ApplicationDataType Record Example

Figure 12. ImplementationDataType Record Example

For application data types, records and arrays are directly modeled in AUTOSAR, whereas primitive application data types are modeled in one class and typed by their Category attribute. Implementation data types are modeled as only one type by AUTOSAR (one for types, one for the elements), and the actual typing is completely done via the Category attribute. This can be seen in the previous example for the Record data type in ImplementationRecordDataTypeExample. The SIModel resolves the AUTOSAR modeling by an on-the-fly transformation and provides the actual data type directly. The resulting type hierarchy is shown in figure SIDataTypeModeling. A complete conversion table is shown in figure SIDataTypeMapping.

Figure 13. SIDataType modeling

Additionally to the data type definition itself, each AUTOSAR data type can optionally reference a so-called CompuMethod. A CompuMethod either defines the computation rule between physical values of application data types to internal values of implementation data types and vice versa, but is also used to refine the data type definition itself more specifically.

E.g. Enumeration data types are defined via CompuMethods, but also special application data types like Cuboid, or special implementation data types like Bitfield. The SIModel resolves this modeling on-the-fly during transformation and provides the actual data type. SIDataTypeMapping shows the mapping of the according MDF model element to the SIModel element as a table.

Figure 14. Data type mapping from MDF to SIModel (* means any other value or null)

To support the reuse of implementation data types, the AUTOSAR model contains a special implementation data type called TypeReference: this type has a reference to another implementation data type, but can also contain the reference to a CompuMethod or data constraints. This allows to reference e.g. a PlatformType uint8, and add a CompuMethod for an Enumeration-definition to define a certain enumeration value based on an uint8 data type. TypeReferences can form chains, so arbitrary further specializations are possible.

The following rules apply when evaluating the type reference chain to determine the actual data type:

• The final referenced data type is the actual base type.
• The first referenced CompuMethod or data constraints in the reference chain defines the specialization of the data type.

• After creating TypeReferences, clients might refetch the data type afterward when a resolved typing is needed.
• Each Implementation-DataType itself can be queried if it is anchored to a type reference and requested as SIImplementationTypeReferenceDataType.

Figure 15. Example of type references

As for SIComponents or SIPorts, the instances of data types (e.g. subtypes of MIDataPrototype) are provided typed according to their referenced data type and called SIDataElement in the SIModel. This also comprises the implementation data type elements of the implementation datatypes. E.g. a MIVariableDataPrototype of an MISenderReceiverInterface is represented as properly typed SIImplementationRecordDataElement in case the referenced data type is an SIImplementationRecordDataType. Since implementation data type elements also exists as TypeReferences, the transformation to the final referenced data type applied here is the same as for the SIImplementationDataTypes. Figure DataElementModeling shows a partial excerpt of the data element modeling.

Figure 16. Excerpt of data element modeling
